Chip Models: Alien H3, lmpinj Monza R6P, lmpinj Monza 4QT
Product Dimensions: 85 × 20 × 11 mm; other dimensions available upon request
Surface Material: ABS (high-temperature-resistant industrial ABS), 3M foam adhesive
Communication Protocol: ISO/IEC 18000-6C
Operating Frequency: UHF 860–960 MHz
Memory Capacity: EPC 96–480 bits, USER 512
Operating Temperature: -20° to 100°
Data Retention: Greater than 10 years
Write/Erase Cycles: Greater than 100,000 times
Printing Methods: Screen printing, laser engraving, inkjet coding, etc.
Main Applications: Suitable for inspections of large-scale outdoor power equipment, large transmission towers and utility poles, large and medium-sized elevators, pallet management, large pressure vessels, liquefied gas cylinders, factory equipment management, line inspections, metal bridge quality inspections, tunnel inspections, machine identification, vehicle license plates, metal container management, and product tracking for various household electrical appliances
Description

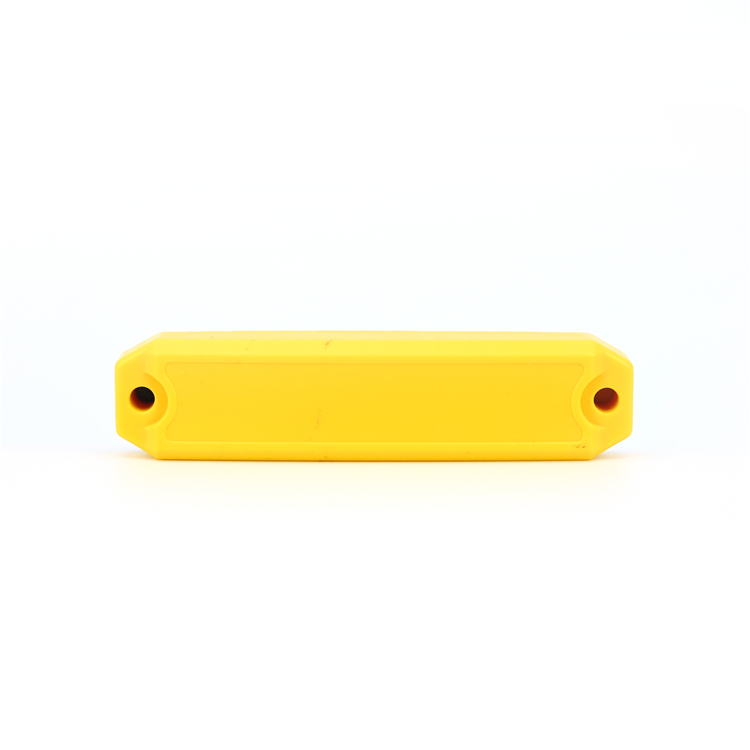

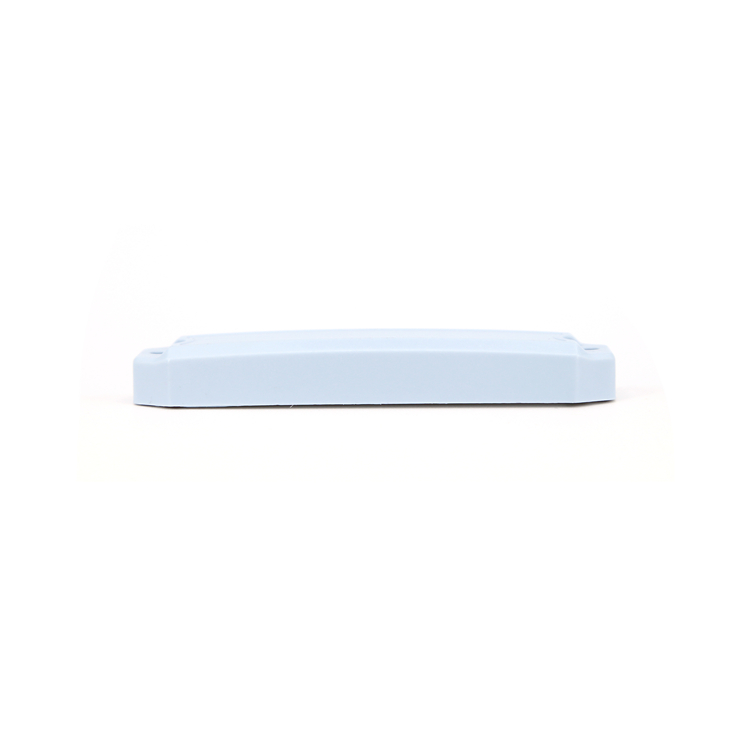

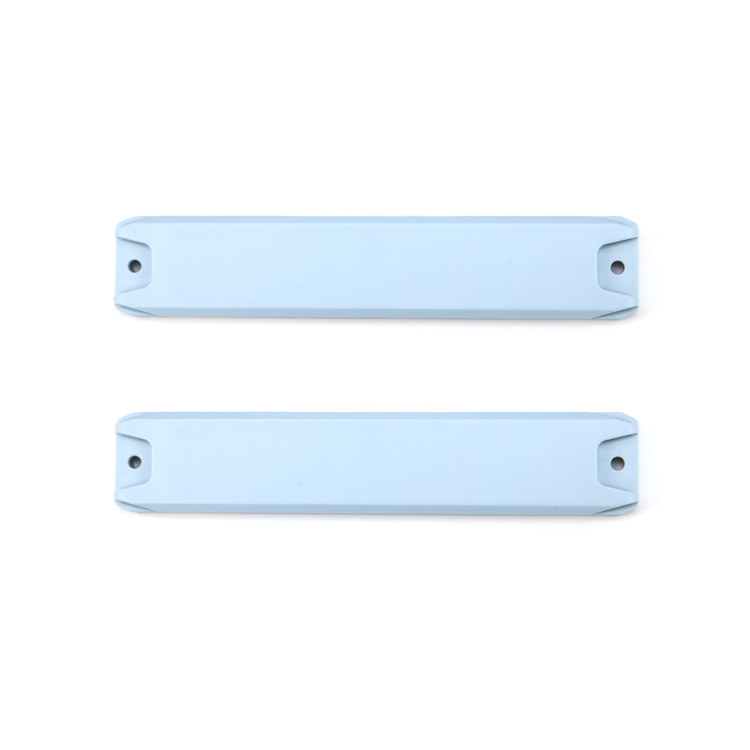

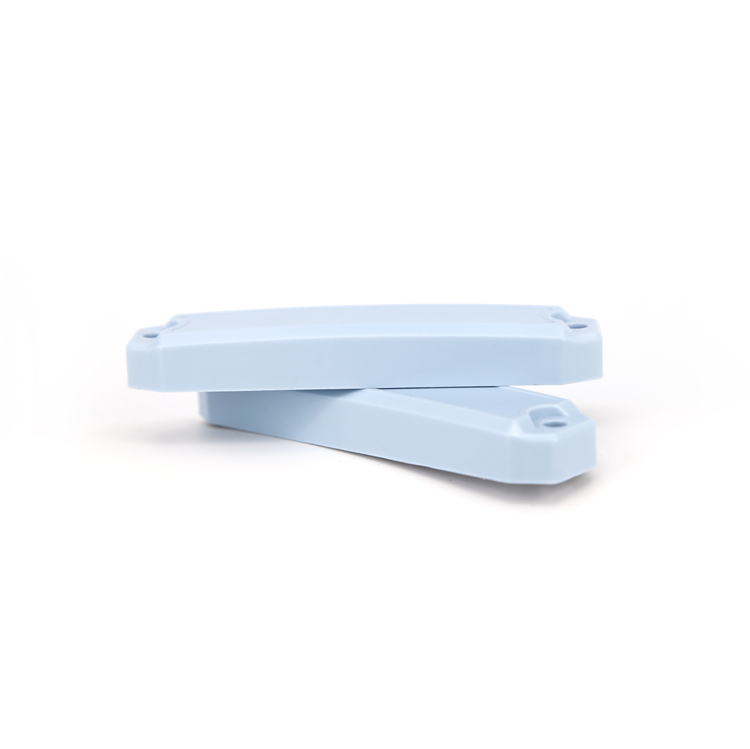

ABS anti-metal RFID tags are RFID tags with an additional layer of anti-metal material applied to the original tag. This layer prevents the tag from failing when attached to a metal object. The anti-metal material is a special anti-magnetic, signal-absorbing material encapsulated within the tag, which technically resolves the challenge of RFID tags being unable to function when attached to metal surfaces. The product is waterproof, acid-resistant, alkali-resistant, and impact-resistant, and is suitable for outdoor use.
Features
Optimal Encapsulation Materials
ABS anti-metal tags are manufactured using high-temperature-resistant industrial ABS plastic, metal-shielding epoxy resin encapsulation, and ultrasonic welding. They offer excellent corrosion resistance, UV resistance, water resistance, and high-temperature resistance.
Simulation Results Approaching Non-metallic Performance
The high-performance UHF inlay housing, combined with ferrite and optimized through simulation calculations, enables ultra-long-range reading. It delivers excellent read performance on metal surfaces, with read ranges approaching those of non-metallic surfaces.
Waterproof and Dustproof for Harsh Environments
Ultrasonic encapsulation ensures a strong seal, allowing for long-term use in humid, sandy, and other harsh environments.
Easy Installation
Designed for convenient installation in various environments, it can be secured using 3M adhesive tape, screws, rivets, or high-strength adhesive, depending on the specific installation conditions.
Wide Range of Applications
Asset Management/Item Identification: Suitable for item identification, process control, factory automation, access control, and security containers; liquefied gas cylinders; factory equipment management; line inspections; quality inspection of metal bridges; tunnel inspections; machine identification; vehicle license plates; and metal shipping containers.
Application
1. Warehouse asset management.
2. Indoor equipment management.
3. IT asset management.
4. Metal sheet management.
5. Asset management on metal surfaces with limited installation space, etc.
