Product Specifications

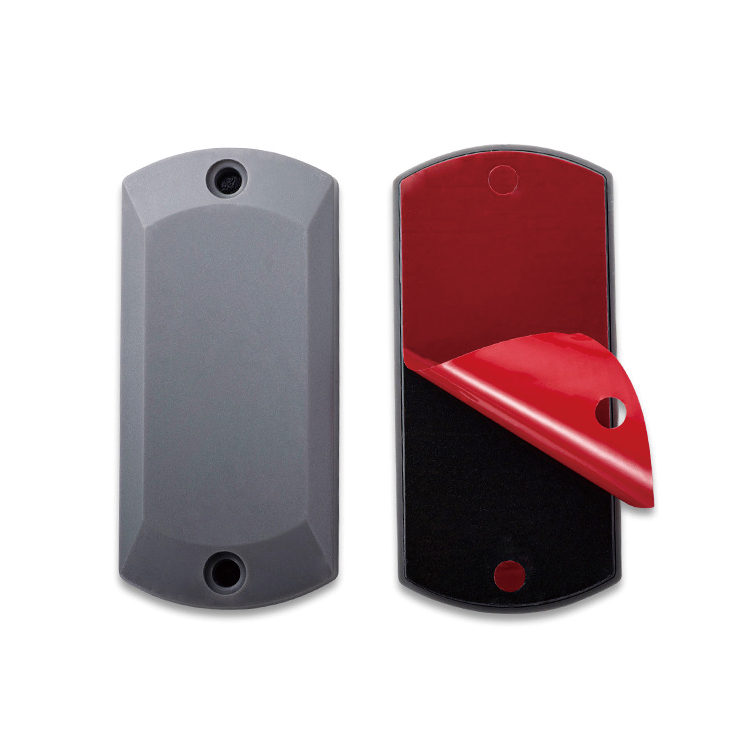

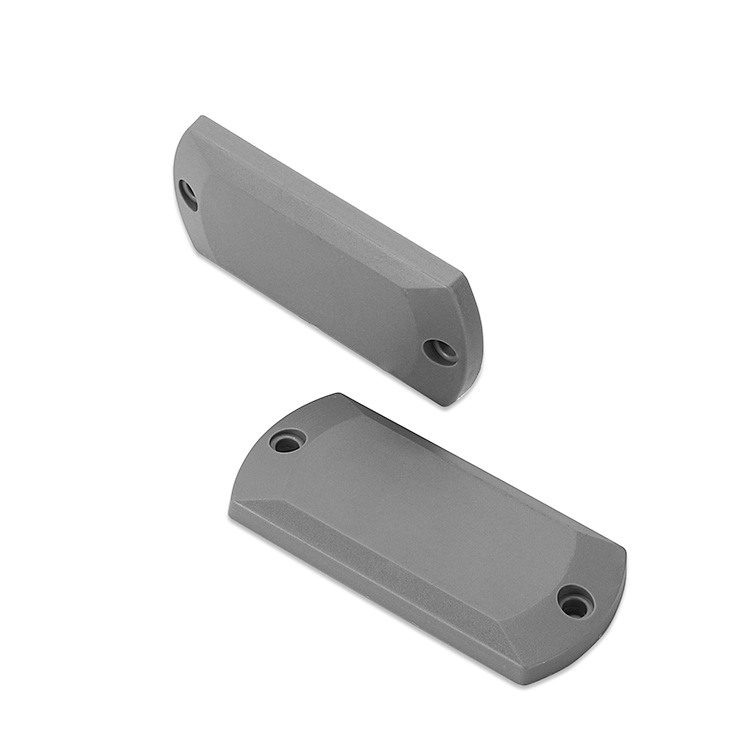

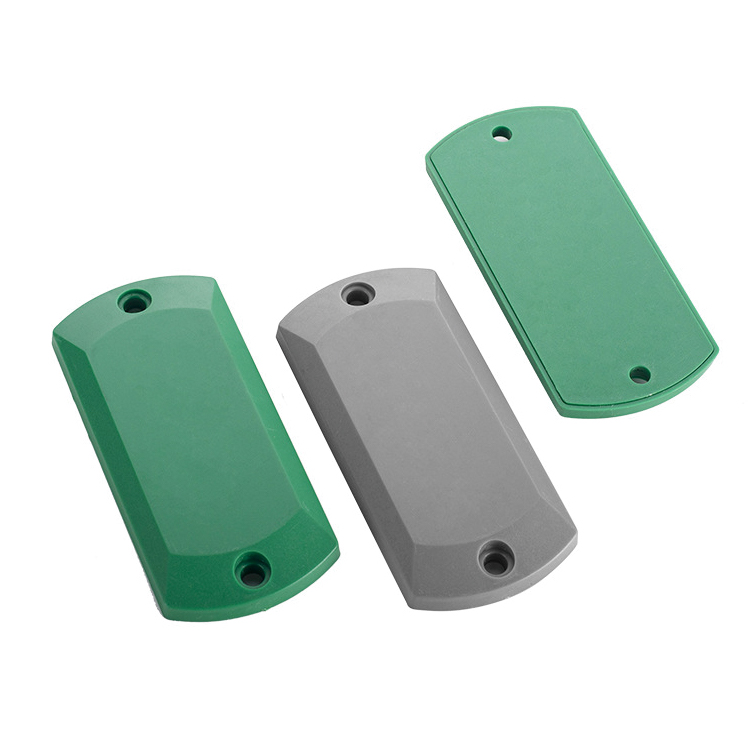

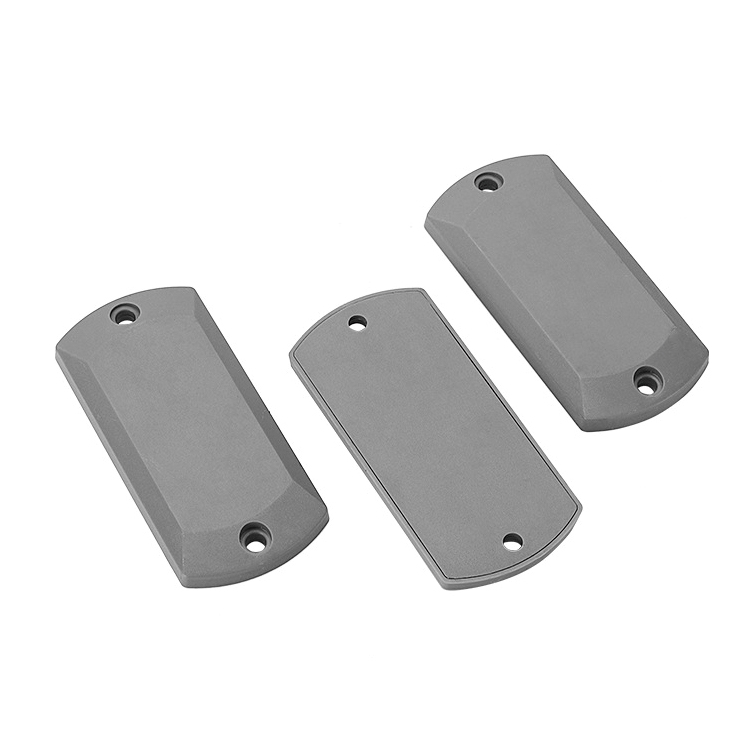

Product Name: ABS Tag
Chip Type: NXP U8/U9
Storage Capacity: EPC 128 bits
Operating Frequency: 860–960 MHz
Reading Range: Approximately 10 meters (depends on the reader)
Protocol: ISO 18000-6C
Material: ABS
Product Dimensions: 86 × 40 mm × 8 mm
Customization Options: Choice of chip; laser-printed company logo, serial number, and QR code
Description
This tag is an electronic tag encapsulated in ABS, compliant with the EPC C1G2 (ISO 18000-6C) standard, and operates at a frequency of 860 MHz to 960 MHz, making it suitable for global use. The RFID chip stores a unique identifier and other updated information. It is suitable for apparel, footwear, and handbag retail, document management, and other specialized applications.
Features
● Enhanced industrial-grade ABS plastic for greater durability
This cable tie tag is manufactured using modified industrial-grade ABS plastic, encapsulated with epoxy resin, and ultrasonically welded. It offers excellent corrosion resistance, UV resistance, and water resistance. The product features a self-locking mechanism with tamper-proof functionality and a reliable structure.
● High Sensitivity
Faster and more stable data read/write performance. The built-in inlay antenna utilizes pre-exposure, development, and etching technology, with aluminum etched line widths controlled to within ±0.03 mm and the finest lines reaching 0.075 mm. The antenna lines are smooth, with minimal tolerances between line spacing and width, resulting in a more precise resonance frequency and faster, more stable data read/write performance.
● Water- and Dust-Resistant
Strong sealing ensures adaptability to various environments. Utilizing ultrasonic encapsulation, the tag offers superior sealing and can be used in humid and sandy environments. When necessary, it achieves an IP68 waterproof rating, enabling long-term use in harsher conditions.
Application
Apparel and Luggage Management
