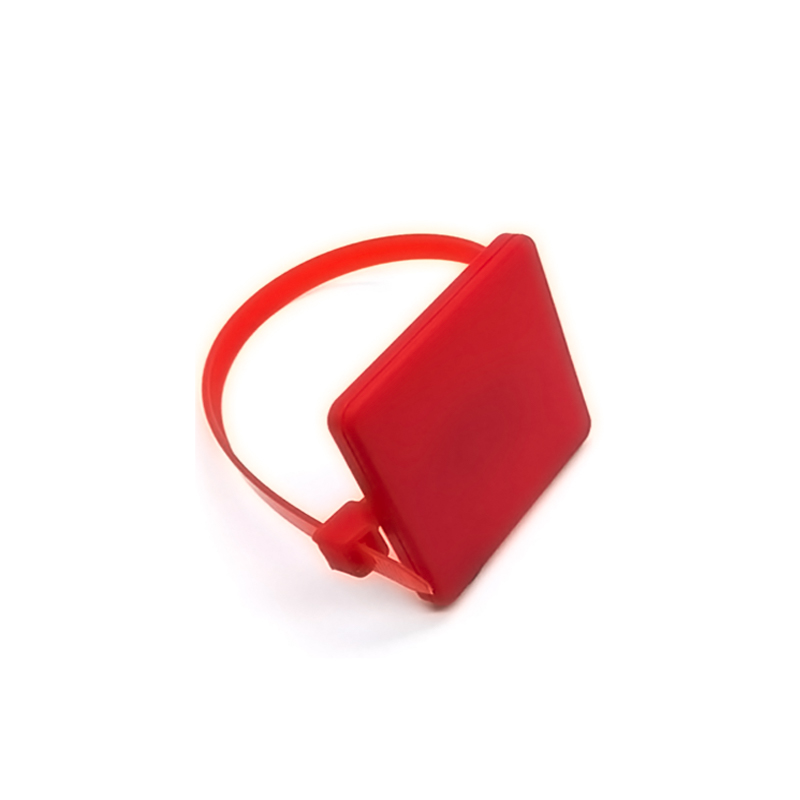

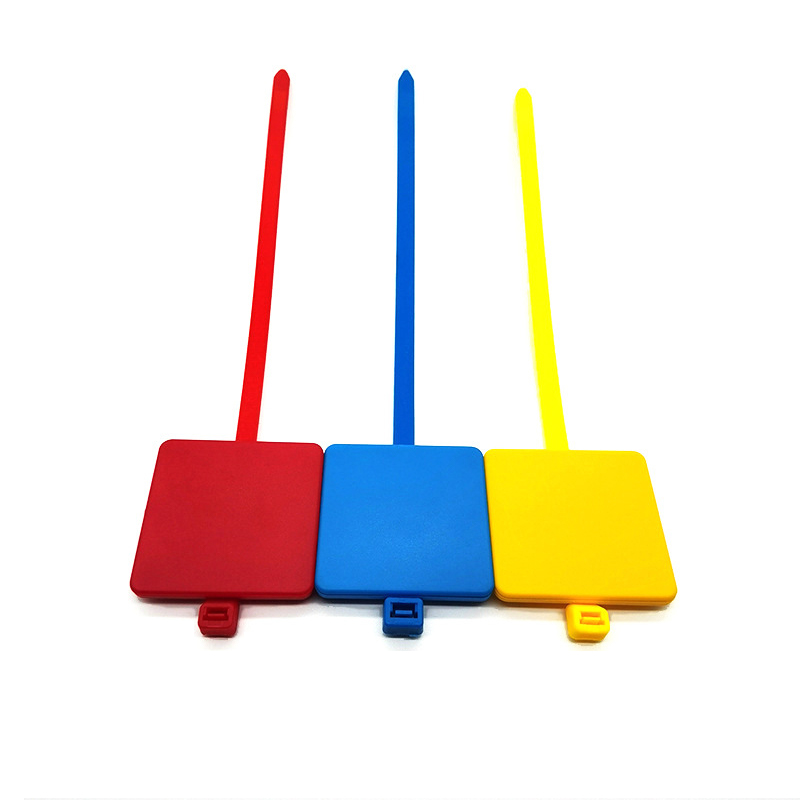

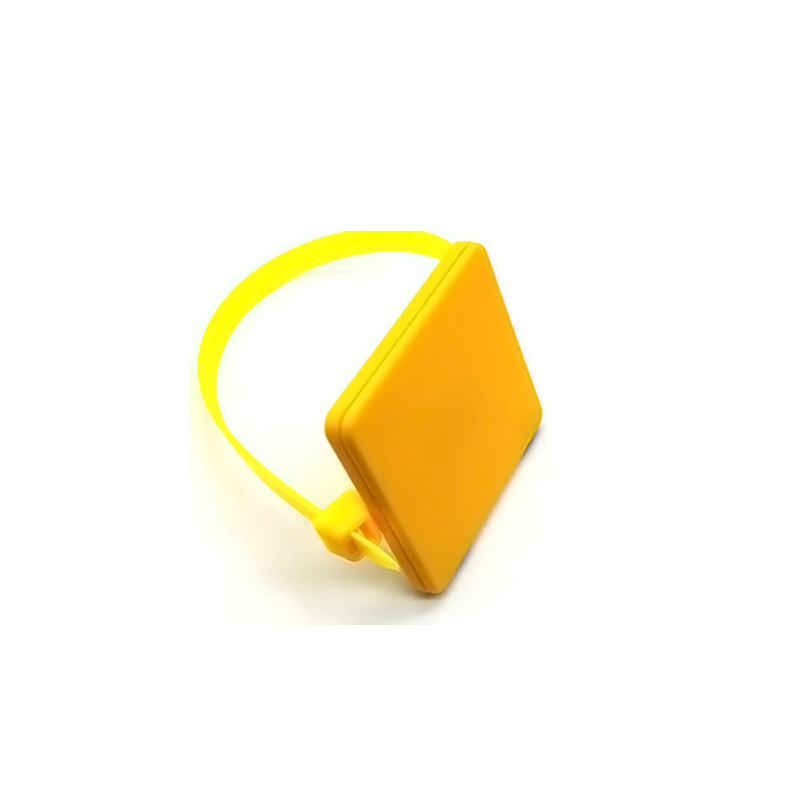

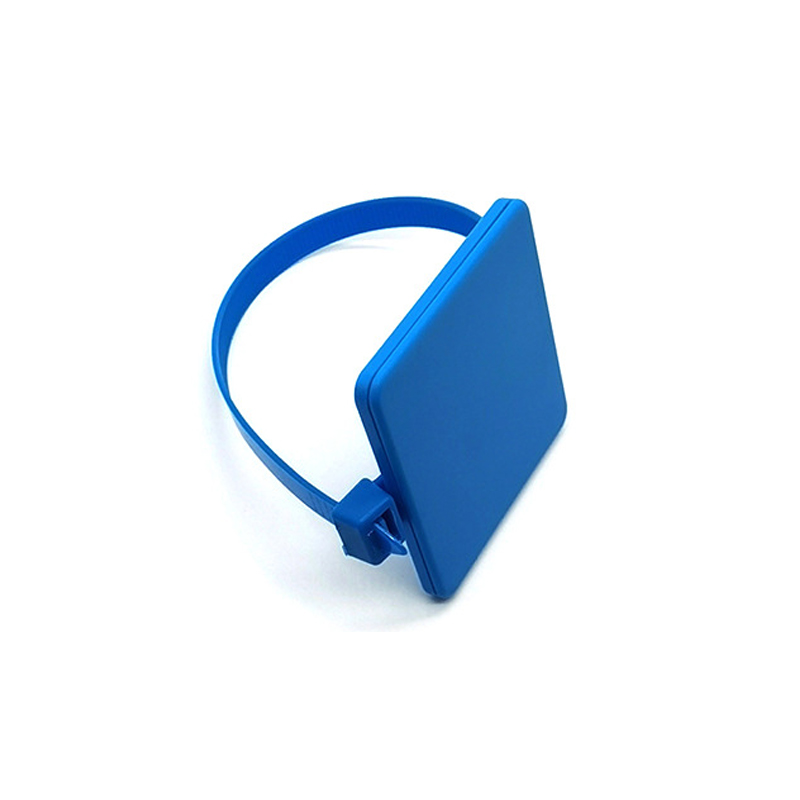

Type: RFID Cable Tie Seals
Chip Type: Compatible with low-frequency, high-frequency, and ultra-high-frequency chips
Read/Write Range: 1 cm / 1–3 m (depending on the environment and reader)
Operating Temperature: -25–85°C
Product Color: Available in a variety of colors
Encapsulation Material: ABS engineering plastic
Function: Read-only / Read-write
Chip Storage Capacity: Depends on chip model
Storage Temperature: -25–85°C
Data Retention: 10 years
Dimensions: Tag: 53 × 53 × 4.5 mm; Tail Strap: 250 mm long
Applications: Logistics and warehousing, security, asset management, etc.
Description
RFID cable tie tags are widely used in various applications where items need to be secured with cable ties. The electronic tag on the cable tie is positioned on the outside of the bundle, so it is not affected by the material of the item being secured and can be easily attached to specific locations on the item. These tags enable contactless identification and rapid authentication of secured items, facilitating the management of item data for logistics tracking purposes.
Features
● Enhanced industrial ABS plastic for greater durability
This cable tie tag is manufactured using modified industrial ABS plastic, encapsulated with epoxy resin, and ultrasonically welded. It offers excellent corrosion resistance, UV resistance, and water resistance. The product features a self-locking mechanism with tamper-proof functionality and a reliable structure.
● High Sensitivity
Faster and more stable data read/write operations. The built-in inlay antenna utilizes pre-exposure, development, and etching technology, with aluminum etched line widths controlled within ±0.03 mm and the finest lines reaching 0.075 mm. The antenna lines are smooth, with minimal tolerance between line spacing and width, resulting in a more precise resonance frequency and faster, more stable data read/write operations.
● Adaptable to Various Challenging Environments
With built-in metal locking teeth and a robust overall design, it can withstand a wide range of challenging conditions (low temperatures, high temperatures, tear resistance, and use around objects with extensive markings).
● Water- and Dust-Resistant
Highly sealed to adapt to diverse environments, it utilizes ultrasonic encapsulation for superior sealing. It can be used in humid and sandy environments, and when necessary, achieves an IP68 waterproof rating, enabling long-term use in even harsher conditions.
● Easy Installation
The “pull-to-lock” design allows for manual sealing. Simply pull gently to lock the tie in place; the tie’s structure is reliable and features anti-tamper protection.
● Wide Range of Applications
RFID cable tie tags for item traceability and anti-counterfeiting are widely used in airline baggage tracking, food logistics, asset management, container sealing, express packages, logistics management, and power cable classification management.
Application
1. Freight and logistics management, parcel circulation management.
2. Warehouse management, inventory tracking and management
3. Airline baggage tracking
4. Container sealing
5. Asset management on metal surfaces with limited installation space, etc.
