Product Name: ABS Tag
Chip Type: H3
Storage Capacity: EPC 96 bits
Operating Frequency: 860–960 MHz
Reading Range: Approximately 12 meters (depends on the reader)
Protocol: ISO 18000-6C
Material: ABS
Product Dimensions: 86 × 40 × 9 mm
Customization Options: Choice of chip; laser-printed company logo, serial number, and QR code
Description
When a company uses a large number of returnable containers—such as during high-volume inbound and outbound operations—manually counting and recording them creates a significant workload. This forces companies to incur high labor costs, and errors are difficult to avoid. Using RFID technology to automatically track returnable containers during inbound and outbound operations not only speeds up the process and greatly improves efficiency but also reduces labor costs.
Features
Precision-Engineered, One-Piece Molding
Built-in NFC sensor chip with ultrasonic integrated encapsulation. The chip features anti-counterfeiting and tamper-proof design; it is intelligently recognized by smartphones. The ultrasonic integrated encapsulation ensures waterproof and moisture-resistant protection with high sensitivity.
ABS Enclosure
Freeze-resistant, flame-retardant, acid-resistant, and corrosion-resistant. Manufactured from carefully selected virgin ABS and metal materials, it is dustproof, waterproof, and flame-retardant, with excellent resistance to aging and long-lasting durability.
Waterproof and Sandproof for Harsh Environments
Highly sealed, it can be used for extended periods in humid, sandy, and other harsh environments.
Easy Installation
Convenient for use in various environments. Installation is straightforward; depending on the specific installation environment, it can be secured using 3M adhesive tape, screws, rivets, or strong adhesive.
Application
1 Logistics, cargo tracking, and warehouse inventory management

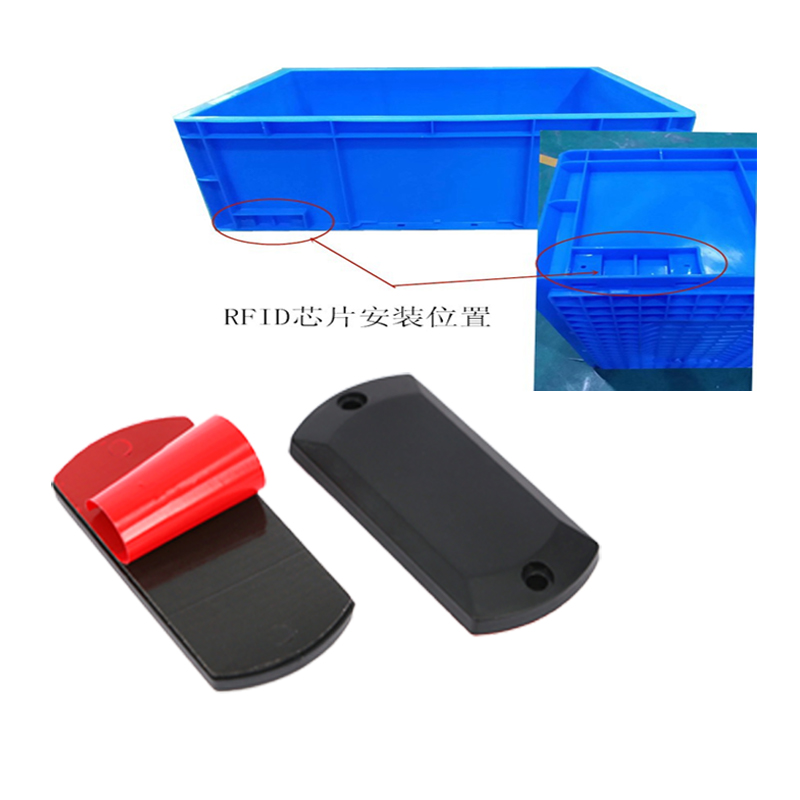

2 Returnable containers
3 Foldable storage cages
