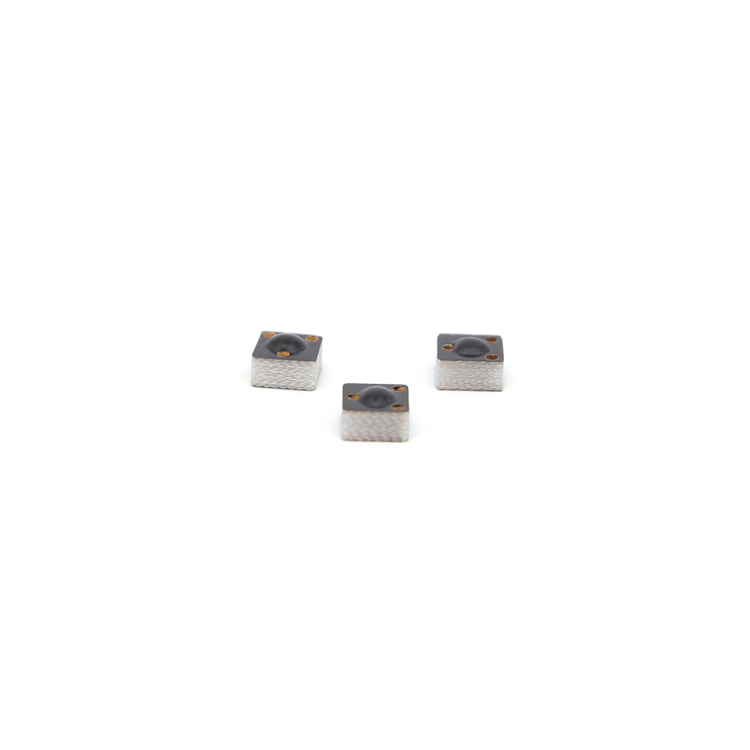

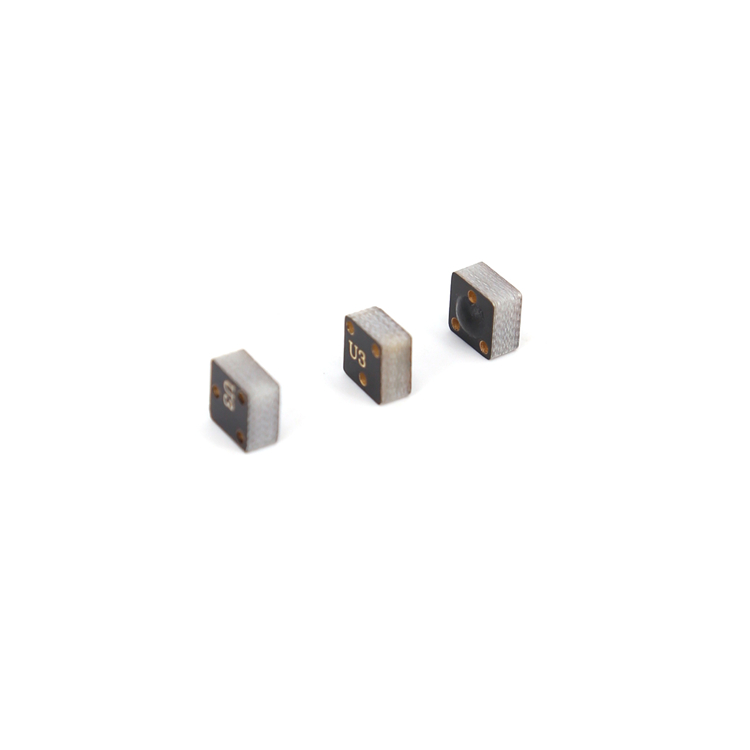

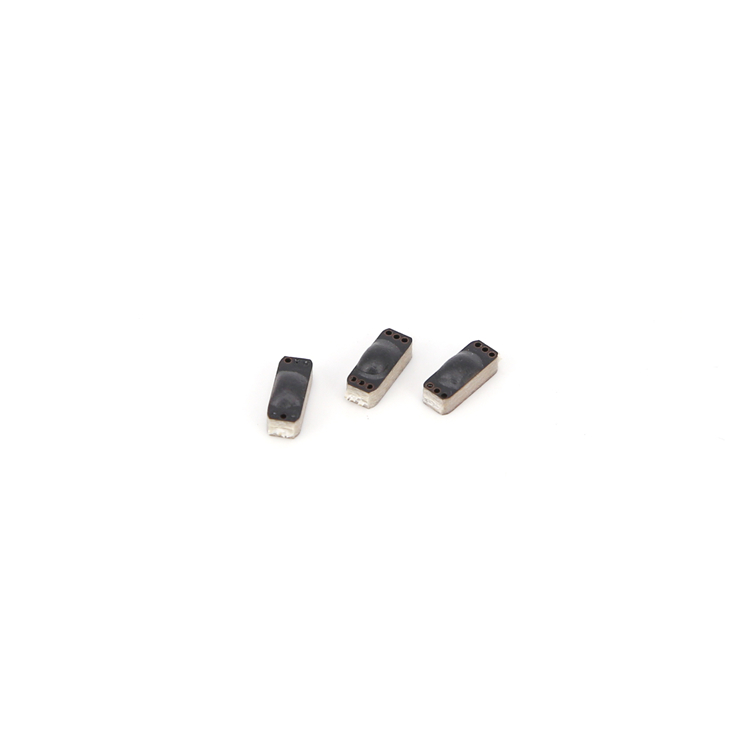

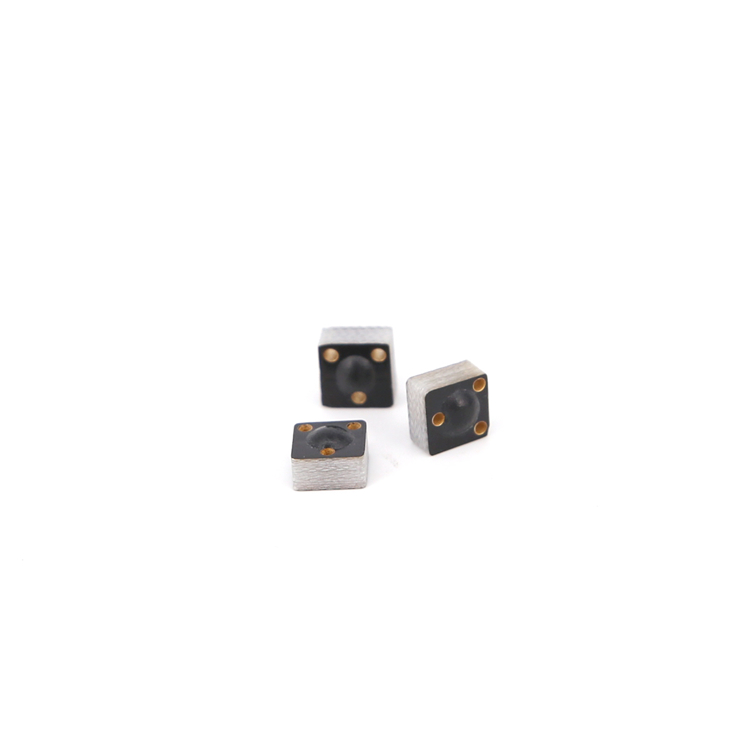

Small-Size of Anti-Metal Tags:

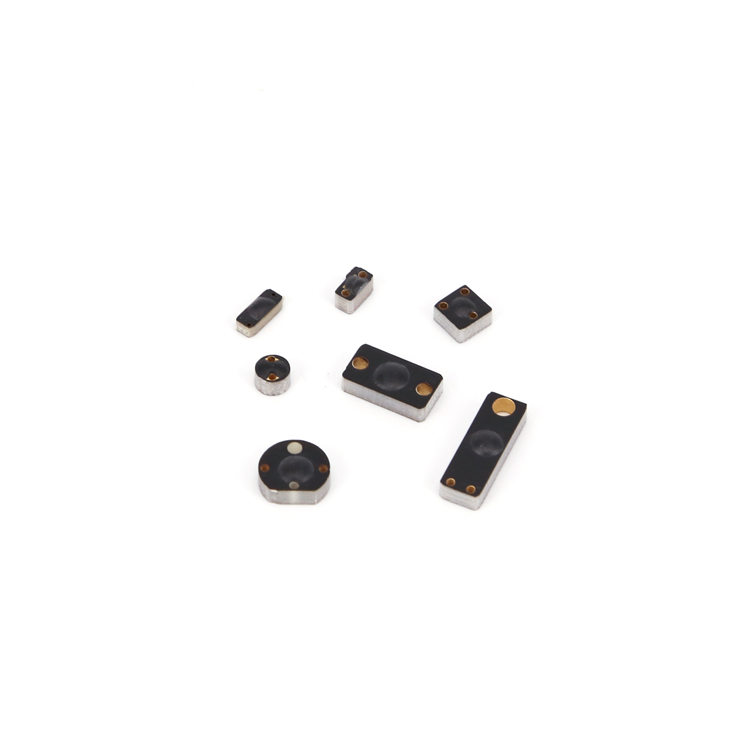

Sizes: 5mm diameter, 6mm diameter, 6x3mm, 6x6mm, 8x3mm, 10x4mm, 10mm diameter, 13x7mm, 16mm diameter, 15x4mm, 18x6mm... For more specifications, please refer to the technical data sheet
Applications: Instrument tracking, tool tracking, medical device management, traceability tags, surgical instrument management, small asset tracking, IT and laptop tracking, embedded bolt identification, weapon tracking, etc.
Description
A PCB (Printed Circuit Board), also known as a printed circuit board, is a type of printed circuit board made from a substrate of resin-coated copper foil or self-adhesive copper foil. It is primarily manufactured using an upside-down packaging and bonding process, resulting in a highly reliable and exceptionally flexible printed circuit board. By integrating antennas and chips onto the PCB through specialized processes, it becomes a PCB electronic tag. PCB electronic tags offer superior resistance to oxidation, impact, and water, making them suitable for high-temperature outdoor environments. They feature a longer service life, ensuring durable performance and facilitating the reading and transmission of information.
Features
● Minimum diameter: 5 mm; Reading distance: 100 cm
This product uses FR-4 material as the substrate. With excellent reliability and consistency, it is widely used in metal environments such as asset management, logistics, equipment management, and internal enterprise production management. It is easy to deploy, has a compact structure, and is drop-resistant.
● Heat Resistance and Flame Retardancy
The glass fiber layer is coated with flame-retardant epoxy resin. The label’s flame-retardant material meets FR-4 standards, offering excellent heat resistance and self-extinguishing properties.
● Flexible Dimensions
Using a multi-layer epoxy board with high gain and bandwidth as the substrate, and drilling through-holes to connect the upper and lower layers of the printed circuit board, the label achieves excellent impedance matching, high gain, and bandwidth even in small sizes. Structurally, it can withstand vibration and mechanical shock.
● Adaptable to Complex Environments
Utilizing a modified glass-fiber epoxy composite laminate as the PCB substrate, the flame-retardant material meets FR-4 standards. It can withstand high temperatures of 200°C, high humidity, and pressures up to 15 bar. Additionally, it resists hazardous chemicals such as H₂SO₄ and saltwater.
● Easy Installation
Suitable for a variety of installation environments, it is easy to install. Depending on the specific installation environment, it can be secured using 3M adhesive backing (with or without adhesive depending on customer requirements), screws, rivets, or strong adhesives.
● Wide Range of Applications
Logistics/Warehousing/Asset Management: FR-4 PCB labels can be used for warehouse logistics management, inventory management, automotive parts tracking, asset management, and industrial manufacturing. They are commonly applied in heavy industry manufacturing, large-scale chemical industries, and critical asset management (power equipment, high-pressure boilers, mold management), etc.
Application
1 Suitable for inspections of large outdoor power equipment, large steel towers and utility poles, and large-to-medium-sized elevators
2. Pallet management and pallet circulation
3. Management of large pressure vessels, liquefied gas cylinders, and factory industrial automation equipment
4. Line inspections, metal bridge quality inspections, and tunnel inspections
5. Machine identification, vehicle license plates, metal container management, and product tracking for various household electrical appliances
