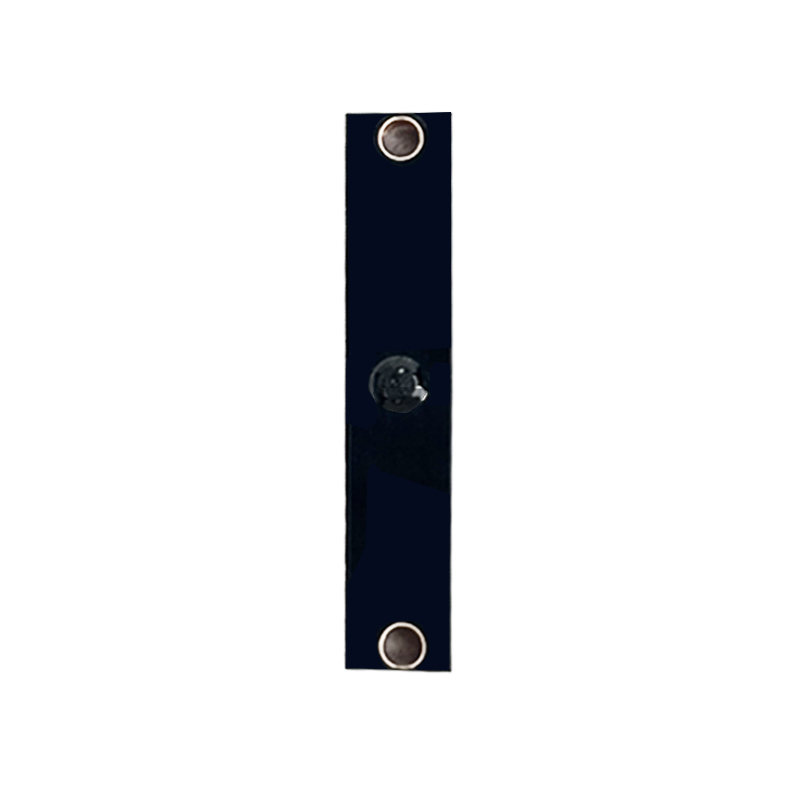

M4E UHF RFID PCB Tag for Pallet Tracking, Smart Shelf & Equipment Management

Description

A PCB (Printed Circuit Board), also known as a printed circuit board, is a type of printed circuit board made from a substrate of resin-coated copper foil or self-adhesive copper foil. It is primarily manufactured using an upside-down packaging and bonding process, resulting in a highly reliable and exceptionally flexible printed circuit board. By integrating antennas and chips onto the PCB through specialized processes, it becomes a PCB electronic tag. PCB electronic tags offer superior resistance to oxidation, impact, and water, making them suitable for high-temperature outdoor environments. They feature a longer service life, ensuring durable performance and facilitating the reading and transmission of information.

Features

        ● High sensitivity, full frequency range (compatible with European and American frequencies)

This product uses FR-4 material as the substrate. With excellent reliability and consistency, it is widely used in metal environments such as asset management, logistics, equipment management, and internal enterprise production management. It is easy to deploy, has a compact structure, and is drop-resistant.

● Heat Resistance and Flame Retardancy

The glass fiber layer is coated with flame-retardant epoxy resin. The label’s flame-retardant material meets FR-4 standards, offering excellent heat resistance and self-extinguishing properties.

● Flexible Dimensions

Using a multi-layer epoxy board with high gain and bandwidth as the substrate, and drilling through-holes to connect the upper and lower layers of the printed circuit board, the label achieves excellent impedance matching, high gain, and bandwidth even in small sizes. Structurally, it can withstand vibration and mechanical shock.

● Adaptable to Complex Environments

Utilizing a modified glass-fiber epoxy composite laminate as the PCB substrate, the flame-retardant material meets FR-4 standards. It can withstand high temperatures of 200°C, high humidity, and pressures up to 15 bar. Additionally, it resists hazardous chemicals such as H₂SO₄ and saltwater.

● Easy Installation

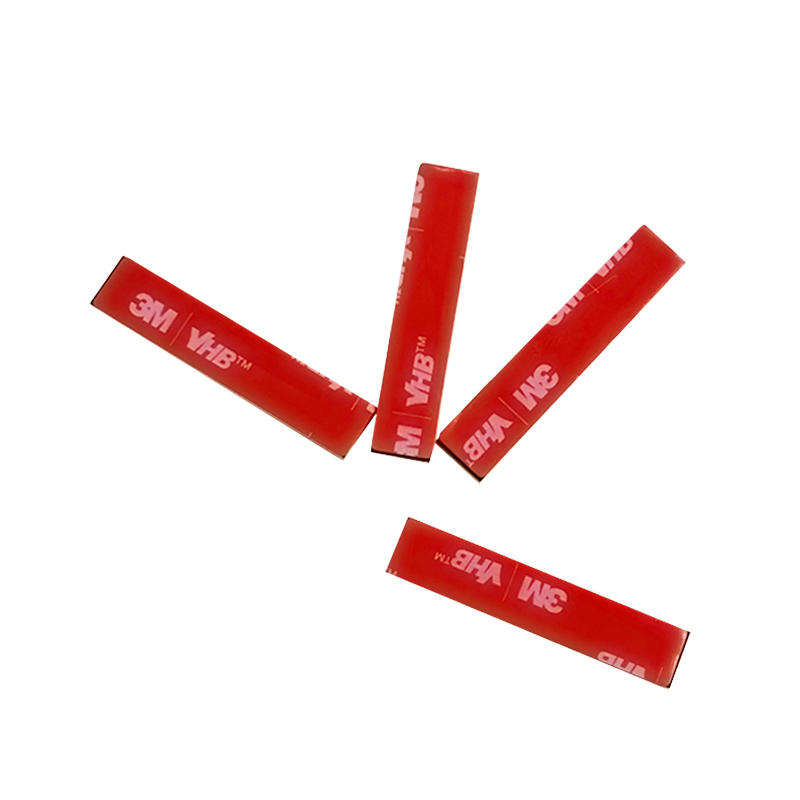

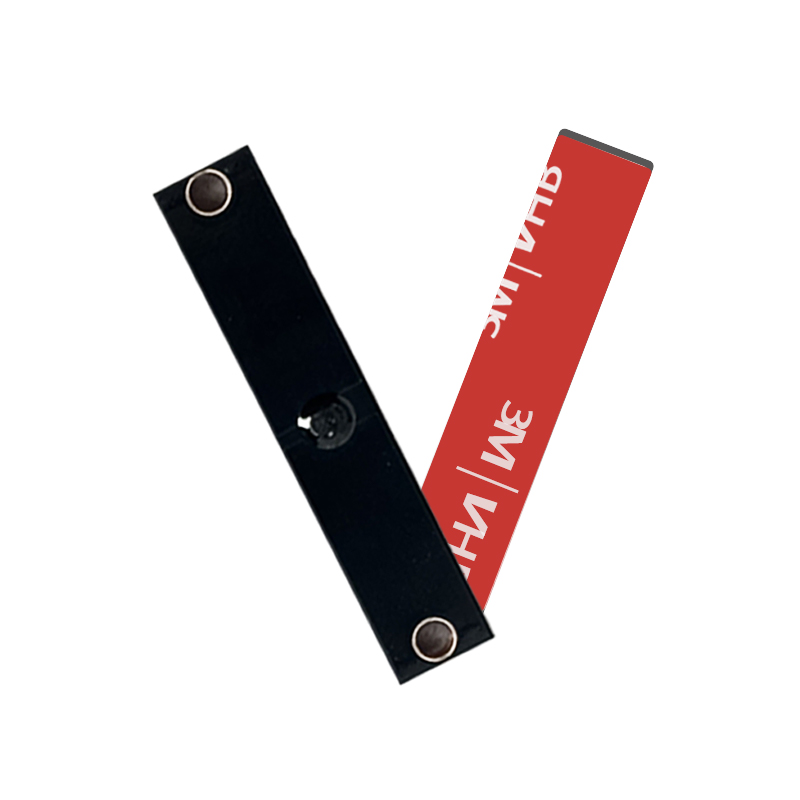

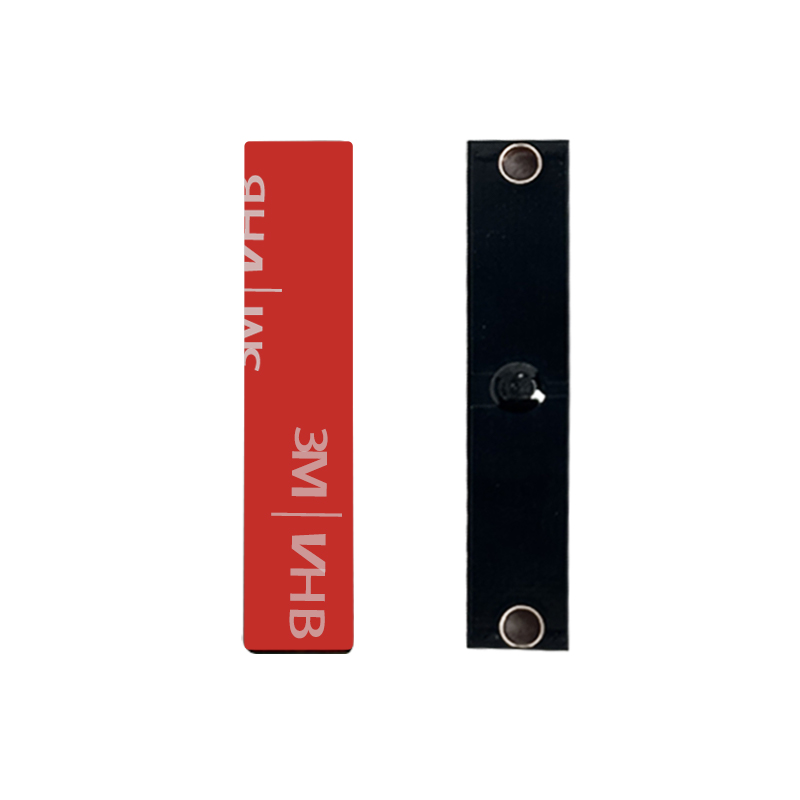

Suitable for a variety of installation environments, it is easy to install. Depending on the specific installation environment, it can be secured using 3M adhesive backing (with or without adhesive depending on customer requirements), screws, rivets, or strong adhesives.

● Wide Range of Applications

Logistics/Warehousing/Asset Management: FR-4 PCB labels can be used for warehouse logistics management, inventory management, automotive parts tracking, asset management, and industrial manufacturing. They are commonly applied in heavy industry manufacturing, large-scale chemical industries, and critical asset management (power equipment, high-pressure boilers, mold management), etc.

Application

1 Suitable for inspections of large outdoor power equipment, large steel towers and utility poles, and large-to-medium-sized elevators

2. Pallet management and pallet circulation

3. Management of large pressure vessels, liquefied gas cylinders, and factory industrial automation equipment

4. Line inspections, quality inspections of metal bridges, and tunnel inspections

5. Machine identification, vehicle license plates, metal container management, and product tracking for various household electrical appliances
