Physical Specifications
Housing Material: Engineering Plastic
Dimensions: 47.87 x 35 x 7.8 mm
Weight: 23.5 g
Color: Black, Gray
Operating Temperature: -40°C to +225°C
Performance Specifications
Protocol: EPC C1G2 (ISO 18000-6C)
Operating Frequency: 860–960 MHz
Integrated Chip: Alien Higgs-3
EPC Memory: 96 bits, expandable to 480 bits
User Memory: 512 bits
Reading Range: Fixed-mount: Over 8 m (based on 30 dBm output)
Handheld: Over 4 m (based on 27 dBm output)
Other Specifications
Environmental Compliance: Compliant with RoHS Directive
Data Retention: Greater than 10 years
Write/Erase Cycles: 100,000 times
Mounting Methods: Adhesive, Rivet (with holes)
Customization: Company logo printing
Industry Applications: Industrial, medical devices, asset tracking and management, warehousing and logistics management, and other related fields

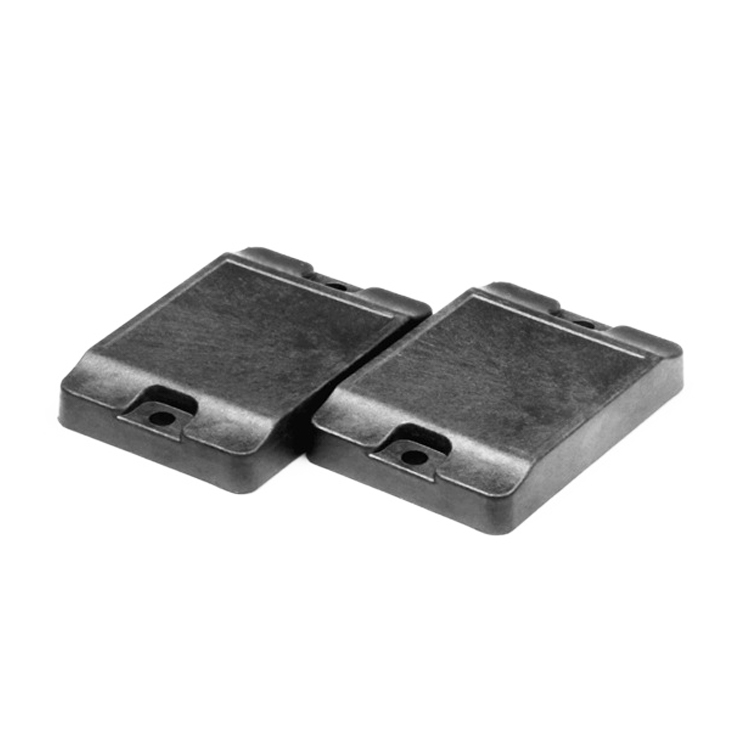

Description
This tag is an electronic tag encapsulated in a special engineering material, specifically designed for tracking metal assets in harsh environments, such as high-temperature sterilization and chemical cleaning. With an IP68 waterproof rating and temperature resistance up to 200°C, it is suitable for building wall management, gas pipeline marking, location marking of urban underground pipelines, and concrete test specimens.
Features
Acid, Alkali, and Corrosion Resistance
This tag offers excellent wear resistance and chemical corrosion resistance, withstanding the erosion of chemicals such as oils and solvents, thereby extending the tag’s service life.
Precise Geolocation
The electronic tag integrates geolocation capabilities and can be paired with navigation systems on equipment like AGVs to enable precise tracking and positioning, enhancing the operational efficiency and accuracy of automated logistics equipment.
Easy Installation and Maintenance
The electronic tag features a self-adhesive design with a perforated backing, enabling quick and simple installation. Its excellent durability also reduces maintenance costs.
Environmental Friendliness and Sustainability
TPU and modified polyurethane resin are both eco-friendly materials that can be recycled and reused, meeting modern society’s environmental requirements.
In summary, TPU-based geolocation AGV modified polyurethane resin electronic tags offer advantages such as high-temperature resistance, weather resistance, flexibility, wear resistance, chemical resistance, precise geolocation identification, and environmental sustainability, making them an indispensable component of logistics automation equipment.
Application
Building wall management, gas pipeline marking, urban underground pipeline location marking, concrete test specimens, etc.
