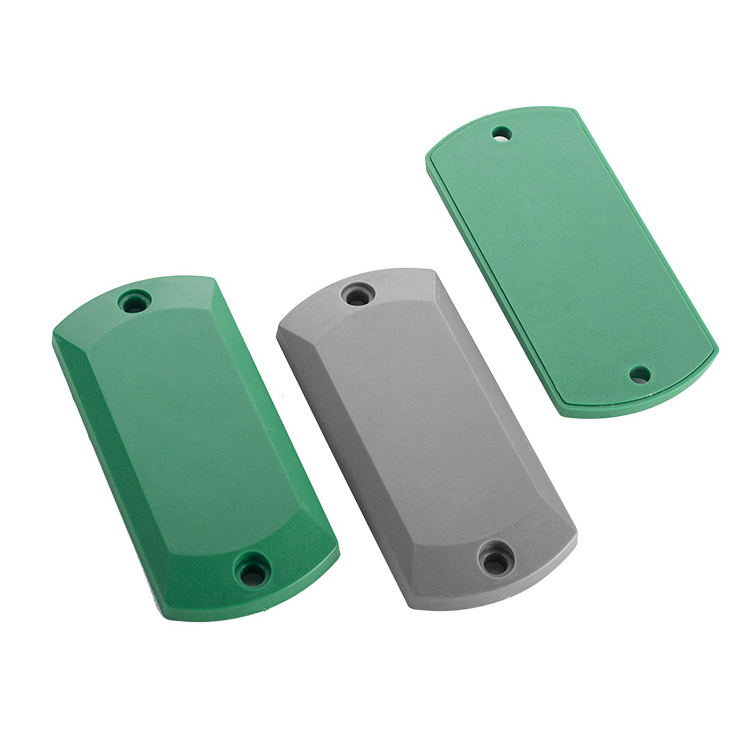

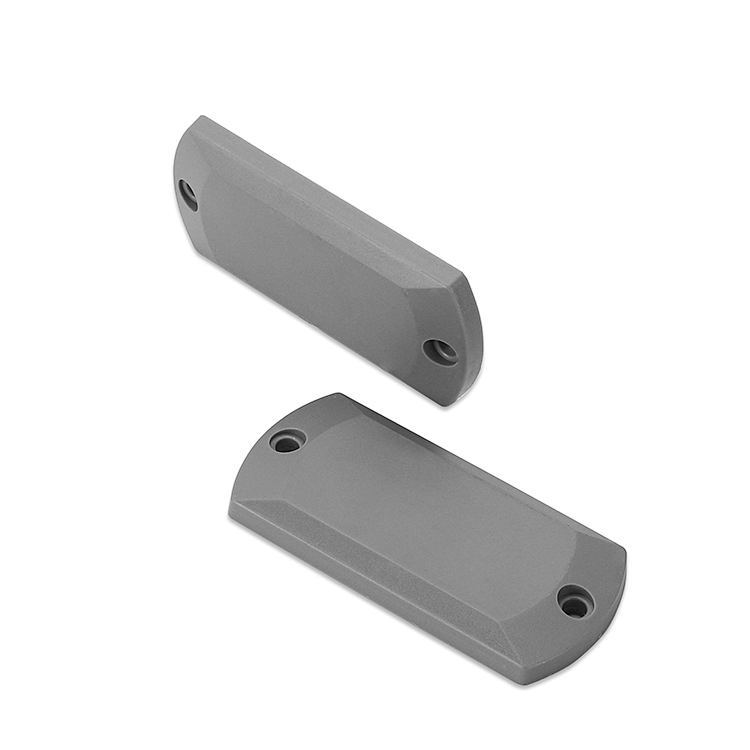

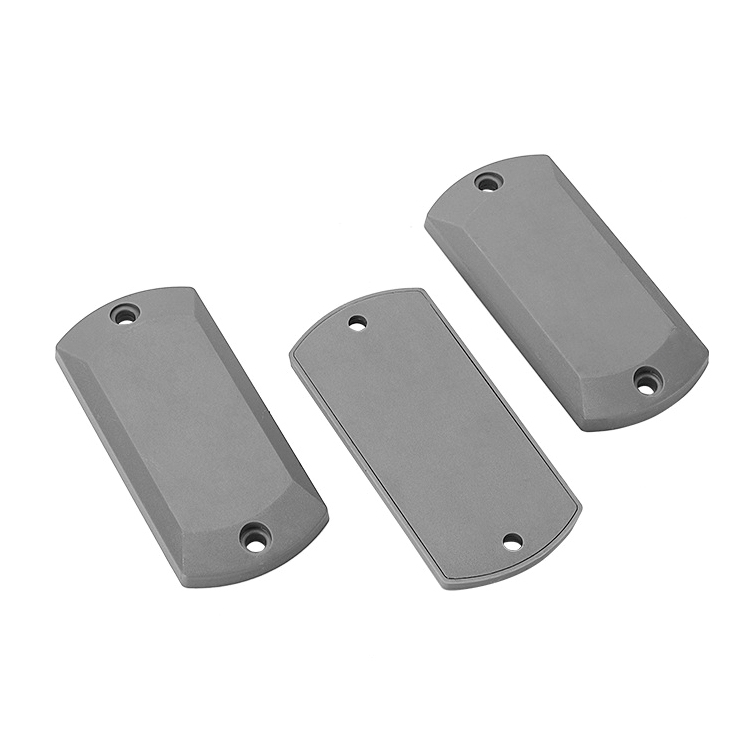

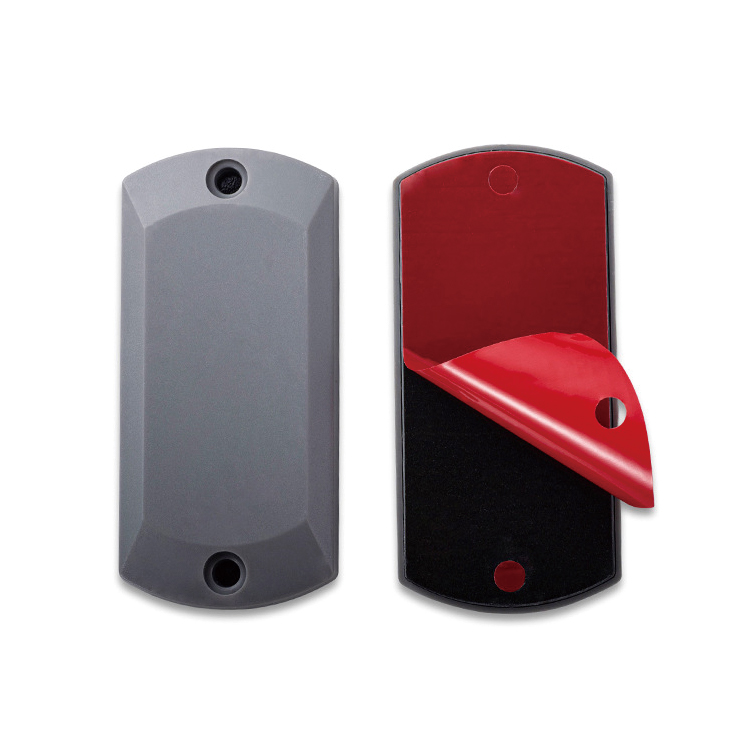

Product Name: ABS Tag
Chip Type: NXP U8/U9
Storage Capacity: EPC 128 bits
Operating Frequency: 860–960 MHz
Reading Range: Approx. 10 meters (depends on the reader)
Protocol: ISO 18000-6C
Material: ABS
Product Dimensions: 86 x 40 x 8 mm
Customization Options: Choice of chip; laser printing of company logo, serial number, and QR code
Description
This tag is an ABS-encapsulated electronic tag that complies with the EPC C1G2 (ISO 18000-6C) standard. It operates at a frequency of 860 MHz to 960 MHz and can be used worldwide. The RFID chip stores a unique identifier and other updated information. It is suitable for apparel, footwear, and handbag retail, document management, and other specialized applications.
Features
● Enhanced industrial ABS plastic for greater durability
This cable tie tag is manufactured using modified industrial ABS plastic, epoxy resin encapsulation, and ultrasonic welding. It offers excellent corrosion resistance, UV protection, and water resistance. The product features a self-locking mechanism with tamper-proof functionality and a reliable structure.
● High Sensitivity
Faster and more stable data read/write performance. The built-in inlay antenna utilizes pre-exposure, development, and etching technology, with aluminum etched line widths controlled within ±0.03mm and the finest lines reaching 0.075mm. The antenna lines are smooth with minimal tolerance between line spacing and width, resulting in a more precise resonance frequency and faster, more stable data read/write performance.
● Water- and Dust-Resistant
Strong sealing capability adapts to various environments. Utilizing ultrasonic encapsulation ensures robust sealing, enabling use in humid and sandy environments. When necessary, the waterproof rating can reach IP68, allowing for long-term use in harsher conditions.
Application
Apparel and Luggage Management
