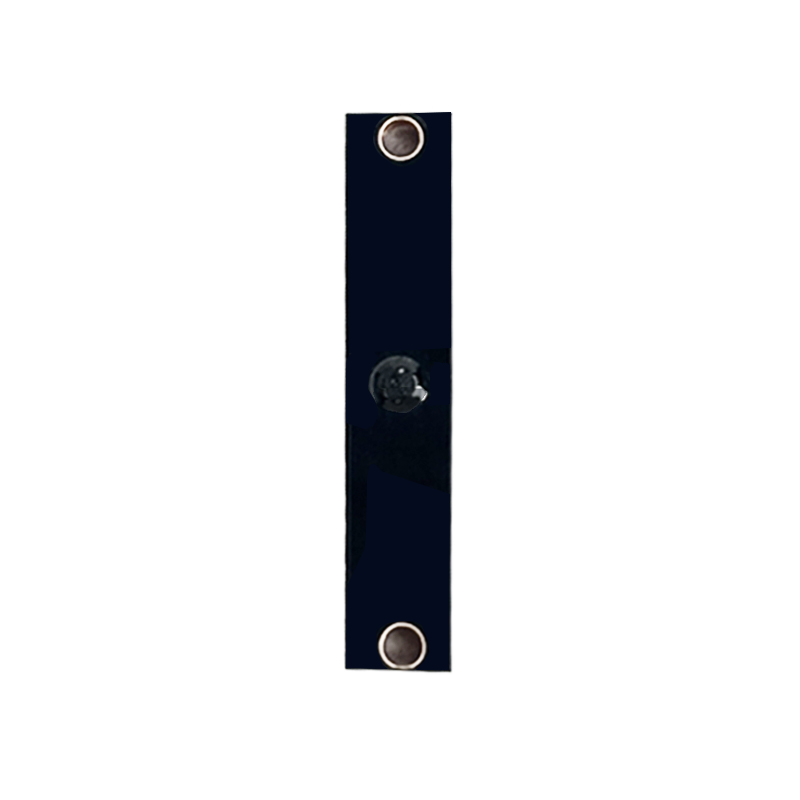

Chip Model: lmpinj Monza 4E
Product Size: 50*10mm
Surface Material: FR4
Communication Protocol: ISO/IEC18000-6C
Operating Frequency: UHF 860-960MHz
Sensing Distance: 1-7M (depending on reader power and product size)
Memory Capacity: EPC code 496 bit; TID code 48 bit; User; 128 bits
Storage Temperature: -40°C to 150°C
Operating Temperature: -40°C to 100°C
Data Retention: Greater than 10 years
Write/Erase Cycles: Greater than 100,000 times
Printing Process: Silkscreen printing, laser engraving, inkjet printing, etc.
Main Applications: Suitable for inspection of large outdoor power equipment, large iron towers and power poles, large and medium-sized elevators, pallet management, large pressure vessels, liquefied gas cylinders, factory industrial automation equipment management, line inspection, metal bridge quality inspection, tunnel inspection, machine marking, vehicle license plates, metal container management, and product tracking of various electrical and household appliances.
Description
PCB (Printed Circuit Board), also known as a printed circuit board, is a type of printed circuit board made by bonding resin copper foil or adhesive copper foil to a substrate. It is primarily manufactured using a flip-chip bonding process, resulting in a highly reliable and highly flexible printed circuit board. By adding antennas and chips to the PCB, it becomes a PCB electronic tag. PCB electronic tags offer excellent oxidation resistance, impact resistance, and water resistance, making them suitable for high-temperature outdoor environments and providing a longer lifespan for more durable use and easy information reading and transmission.
Features
● High Sensitivity, Full-Band (Compatible with European and American Bands)
This product uses FR-4 material as the substrate, offering excellent reliability and consistency, and is widely used in metal environments such as asset management, logistics, equipment management, and internal production management. Easy to deploy, compact structure, and drop resistant.
● Excellent Heat Resistance and Flame Retardancy
The fiberglass layer is coated with flame-retardant epoxy resin. The label's flame-retardant material reaches FR-4 rating, exhibiting excellent heat resistance and self-extinguishing properties.
● Flexible Size
High-gain and bandwidth multi-layer epoxy boards are stacked and drilled as the substrate. Through-holes connect the upper and lower multi-layer printed circuit boards, allowing the label to achieve good impedance matching, high gain, and bandwidth in a small size. Structurally, it can withstand vibration and mechanical shock.
● Adaptable to Various Complex Environments
A modified fiberglass epoxy resin composite laminate is used as the PCB substrate. The flame-retardant material reaches FR-4, capable of withstanding temperatures up to 200°C, high humidity, and pressures up to 15 bar. Furthermore, it resists hazardous chemicals such as H2SO4 and salt water.
● Easy Installation

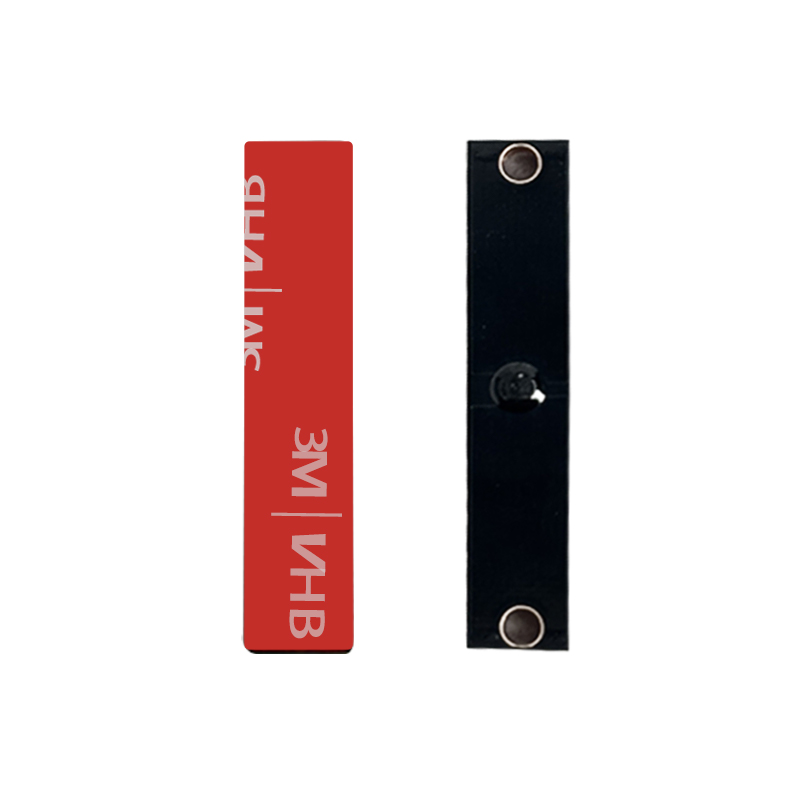

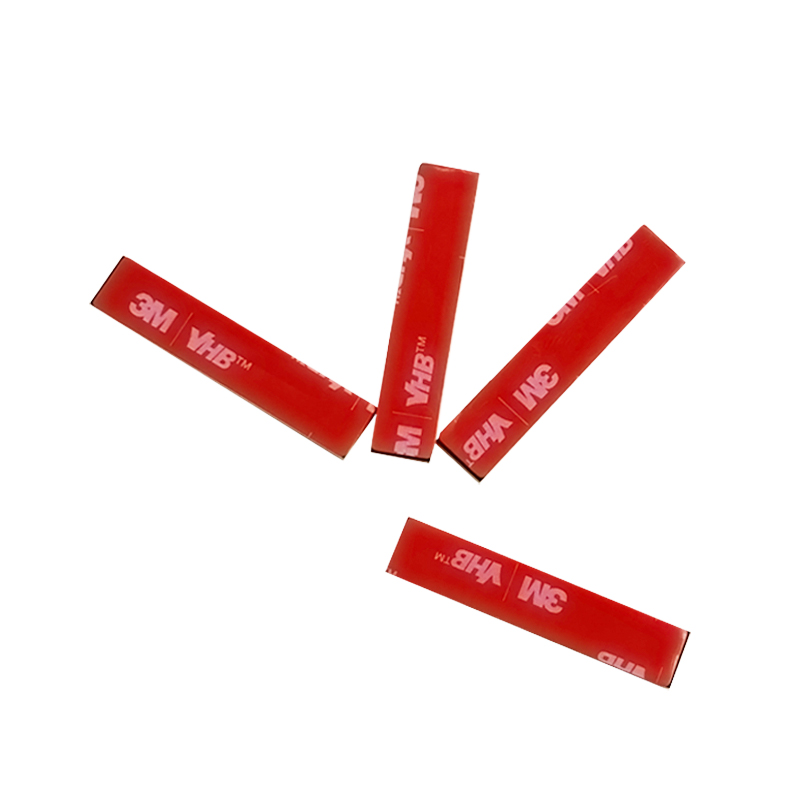

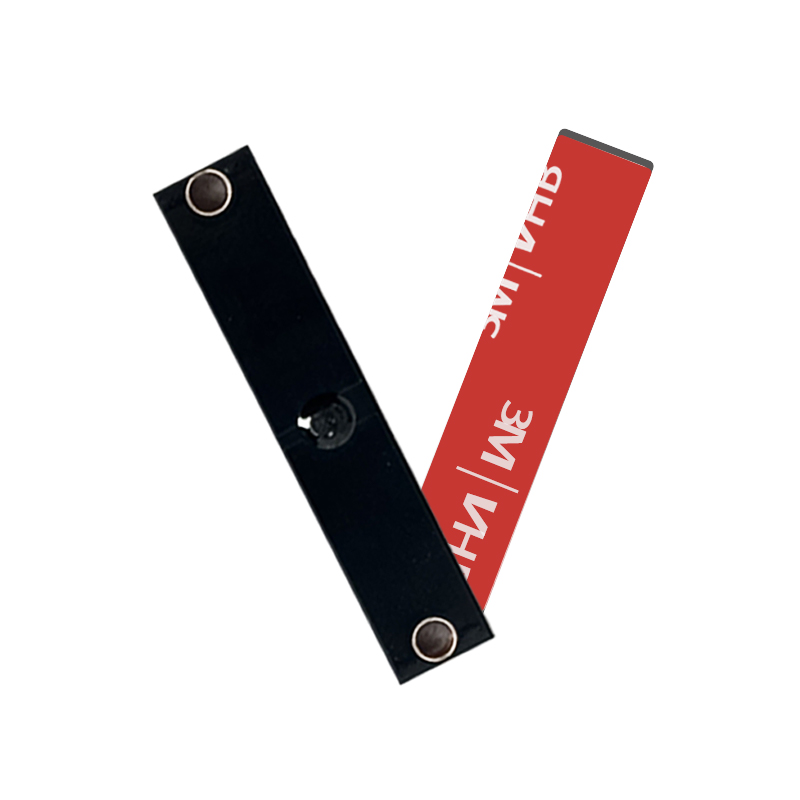

Adaptable to various installation environments. Easy installation; depending on the actual installation environment, it can be fixed using 3M adhesive (with or without adhesive backing depending on customer requirements), screws, rivets, strong adhesive, etc.
● Wide Range of Applications
FR4 PCB labels for logistics/warehousing/asset/management can be used for warehouse logistics management, inventory management, automotive parts tracking, asset management, industrial manufacturing, etc. They are commonly used in heavy industry, large-scale chemical industry, and critical asset management (power equipment, high-pressure boilers, mold management), etc.
Application
1. Suitable for inspection of large outdoor power equipment, large iron towers and power poles, and large and medium-sized elevators.
2. Pallet management and pallet turnover.
3. Management of large pressure vessels, liquefied gas cylinders, and industrial automation equipment in factories.
4. Line inspection, metal bridge quality inspection, and tunnel inspection.
5. Machine identification, vehicle license plates, metal container management, and product tracking for various electrical and household appliances.
